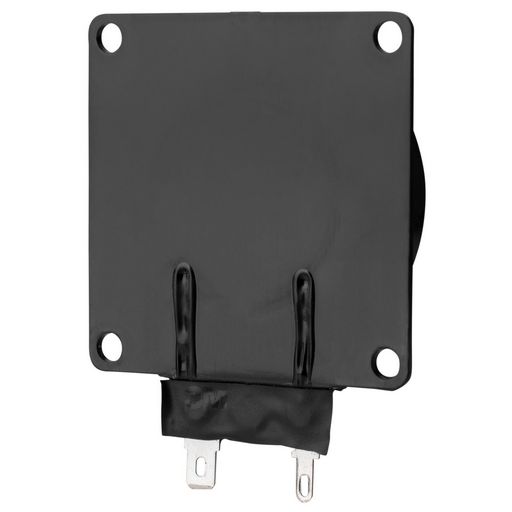

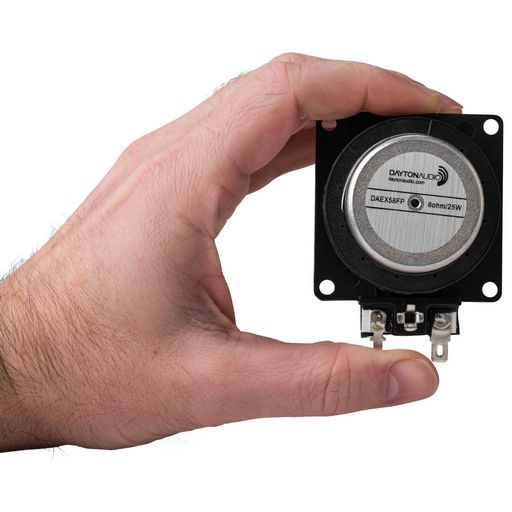

DAYTON SOUND EXCITER 58MM 25W

58MM² FLAT PACK WITH SCREW HOLES

Dayton Audio’s DAEX58FP Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited.

Note: An exciter’s frequency response and sensitivity are completely dependent on the exciter’s designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Ideal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4″ square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area. Surface materials include: cardboard, glass, wood, steel, sheet rock, and more. The 58 mm exciter is heavily used in the automotive, industrial, point-of-sale, retail display, marine, aeronautical industry, digital signage, and art field, along with many other applications where space and depth limitations are a concern. The flat surface of this transducer can be glued, screwed or double face taped to a wide variety of surfaces to suit almost endless needs. Surfaces include metal cabinets, glass panes, picture frames, wood tiles, under table surfaces, inside display cabinets, cardboard signs, sheet metal and much more.

Super small size with low profile height
8 ohms impedance for use in almost any amplifier
Includes mounting plate
Adds sound to any surface
Code DAEX58FP
Description DAYTON AUDIO EXCITER PRODUCT LIST
Cms .05mm/N
Le 0.47mH
Power (RMS) 0-50 Watt
QTY 1
Qts 1.98
Size 2″
Height 20mm
Depth 20mm
Dimensions 20x58mm²
Fs 240Hz
Prms 25W
Power 25Wrms
Coil 32mmØ
Width 58mm²
Diam. 58mm²
Freq. 60Hz – 12KHz
Re 7.0?
Impedance (Ohm) 8 ohm
Impedance 8?
Mms 9.95g
Manufacturer Dayton Audio
Price Type each
Type Exciter
